Log Trace System - LTS
DESCRIPTION & FUNCTION
Lagafors’® new logging system, LogTrace System, was developed to
help our customers manage their cleaning processes, ensure traceability,
provide a system of metrics for critical parameters, including alarm

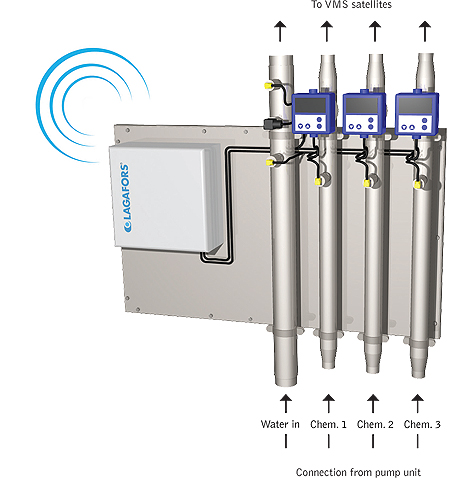

features, as well as documentation. This product is comprised of logging
pipes equipped with meters and sensors, as well as a data-gathering

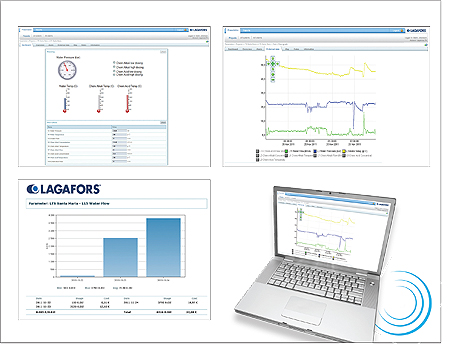

unit and wireless internet connection. Using a secure login via
internet, the customer can view the status and history for one or more
systems. Automatic alarm thresholds can be set for critical parameters,
for example chemical concentration and a text message (SMS) is sent to
the person responsible when the threshold value is passed. This makes
for an active system enabling actions to be taken that ensure optimal
hygienic results. Being able to measure running time is a process
management tool that has proven to be much appreciated.
System features:
- Logging,
- Traceability,
- Measureability,
- Documentation,
- Alarms for various parameters,
- Consumption reports,
- Cost reports.
Features
- Logging of all parameters for all media
- Traceability
- Alarm feature
- Measureability
- Data collection/presentation
Benefits
- Collection, optimization and comparative indexing
- All collected data are saved for the future reference
- Ability to immediately correct settings for cleaning process either on-site or via mobile phone
- Objective assessment of qualitative objectives
- Tool for process management
Facts
- Actual values compared to pre-set values, connected to alarm features and process parameters
- For internal or external process monitoring
- Ability to start or postpone production, depending on action
- Benchamarking and Management by objectives
- Optimizes critical parameters and enables Management by objectives
Technical information Lagafors® Log Trace System LTS
|
|
Model
|
LTS
|
Media, amount
|
1-5 different (water / chemical)
|
Connections (internal thread)
|
Chemical
|
ISO-G 1"
|
Water < 150 lit / min
|
ISO-G 1 1/4"
|
Water > 600 lit / min
|
ISO-G 2"
|
Electric supply
|
Voltage
|
230 V
|
The data is subject to variation and the producer reserves the right to change design specification without notice.
Other requirements:
- The unit (antenna) must be positioned in area with GSM network coverage. 15 meter antenna wire included.
- Conductive measureability is a requirement for all chemical solutions that are measured.
LTS_eng_data sheet (680 KB)
