Cube / Cleaning systems / Dosing Units / Ecomix

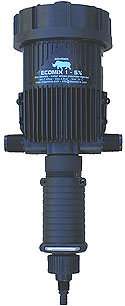

The Ecomix

Our standard injector. The ECOMIX series are reliable, self-priming, easy to maintain and extremely cost-effective. We designed these injectors for use with non-aggressive chemicals, like fertilizers, soaps, termiticides as well as low acidic chemicals such as citric acid and fragrances.

The NOVAMIX ECOMIX injectors are used in a wide number of market applications - Animal Health, Fertilization, Flower Preservation, Garden Centers, Food Processing, Hydroponics, Odor/Misting Control and Cooling, Sanitation and Hygiene and Vehicle Wash.


Technical data Ecomix injectors
Body materials	POM - Polyacetal
Flow rates	0,19 - 42 l/min
Injection ratios	1:500 - 1:20 or 2,2 % - 5,0 %
Pressure range	0,35 - 5,86 bar
Temperature range	0 - 38ºC
Seals	Viton
Water by-pass	No
External Chemical by-pass possible	No
Sizes	H425 x W 170 x D140
In & Outlet	3/4M BSP


Reference	Article
103.245	Ecomix 0,2 - 2 %
103.250	Ecomix 1 - 5 %
