Lagafors® Low Pressure Injector CDE

DESCRIPTION & FUNCTION

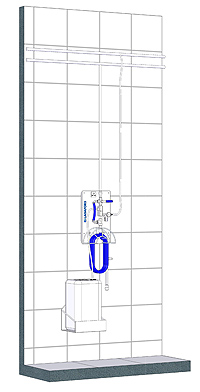

The Lagafors® Low pressure Injector, or CDE, is a functional, low-cost unit for flushing with water and application of foam/chemical solutions. The CDE unit is wall-mounted in the production area/kitchen and is suitable for water pressures from 3-8 bar. The operator can easily shift between different media with one easy maneuver. Concentrated chemicals are extracted from containers placed in the satellite station's immediate vicinity. The CDE unit is equipped with a pressurized air connection. This unit was designed for areas where good hygiene is required, but the use of pressurized water isn't.

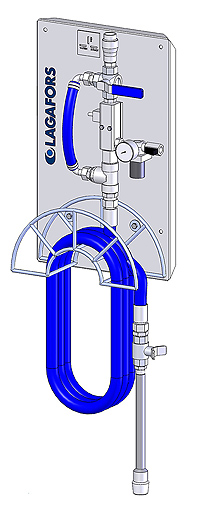

The CDE unit is comprised of:

• Complete chemical solution injector.
• Three-way valve for choice of water or chemical solution.
• Hose rack.
• 15 m (50 ft) hose and foam lance.


Features:

• Simple functionality

• All-in-One
• Easy to mount and connect

• Small number of parts


Benefits:

• Low cost

• Chemical solution and water in one unit

• Time-efficient
• Time and cost-efficient service


Facts:

• Financial savings

• Time-saving
• Low installation cost

• Lower maintenance costs


TECHNICAL INFORMATION

* Factory-set values may need to be adjusted to local conditions, for example  water pressure, chemical solution viscosity, etc.
** Foam quality is affected by supply water pressure and dosing. Use a flush hose with minimum diameter of 3/4" and max length of 20 meters (65 ft).
This unit can be ordered with separate dosing for two chemical solutions. Choice of chemical solution is made using a valve lever.
The data is subject to variation and the producer reserves the right to change design specifications without notice.

Low Pressure Injector CDE (357 KB)
