Cube / Cleaning systems / Decentralized System / Variable media satellite VMS-DC/VMS-DCT

Variable media satellite VMS-DC/VMS-DCT

DESCRIPTION & FUNCTION

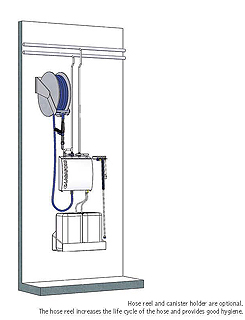

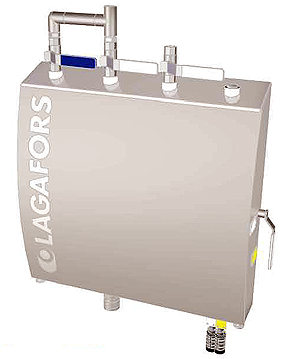

Lagafors Variable Media Satellite, VMS-DC (decentralized), is a hygienically designed satellite station made in stainless steel for water rinsing, foam application and disinfection. The VMS-DC is wall mounted in production areas/kitchens and suitable for water pressures between 5-160 bar. The satellite station has suction hoses with distinctive markings for chemicals and disinfectant. With an easy grip the operator changes between the different medias. Portable containers with chemical concentrate are placed near the satellite station. Compressed air is connected to the VMS-DC unit. For capacity increase, the VMS-DCT offers distribution of up to three different chemicals (e.g. alkaline chemicals, acid chemicals and disinfectant).

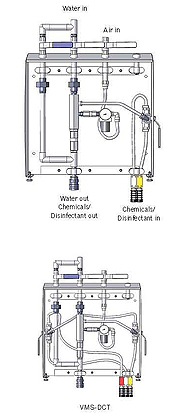

The VMS-DC consists of:

Ball valves for water, chemicals and air.
Suction hoses for chemicals and disinfectant.
Chemical/disinfectant injector.
Removable stainless steel cabinet for easy maintenance.

Features

Stainless steel construction
Suction hoses
Easy to install and connect
Few parts

Benefits

Hygienic and robust material
Easy to change between different chemicals
Time effective
Time and cost efficient service

Facts

Suitable for food processing facilities and restaurants
Time saving
Lower installation costs
Reduced maintenance costs

TECHNICAL INFORMATION


Lagafors Variable Media Satellite VMS-DC/VMS-DCT
Connections incoming water
Water pressure	5-10 bar**	15-25 bar	35-45 bar	60-100 bar	100-160 bar
Dimension	ISO-G 3/8'' int. thread	ISO-G 3/8'' int. thread	ISO-G 3/8'' int. thread	ISO-G 3/8'' int. thread	ISO-G 3/8'' int. thread
Flow, max	35 lit/min	35 lit/min	35 lit/min	35 lit/min	35 lit/min
Connections incoming air
Air pressure	6-8 bar	6-8 bar	6-8 bar	6-8 bar	6-8 bar
Flow, min	50 l/min	50 l/min	50 l/min	50 l/min	50 l/min
Dimensions	ISO-G 3/8'' int. thread	ISO-G 3/8'' int. thread	ISO-G 3/8'' int. thread	ISO-G 3/8'' int. thread	ISO-G 3/8'' int. thread
Dosage
Chemicals*	ca 5-7 %	ca 5 %	ca 5 %	ca 5 %	ca 5 %
Disinfectant*	ca 1.5 %	ca 1.5 %	ca 1.5 %	ca 1.5 %	ca 1.5 %
Dimensions
Measurements WxDxH	440 x 112 x 435 mm	440 x 112 x 435 mm	440 x 112 x 435 mm	440 x 112 x 435 mm	440 x 112 x 435 mm

* Factory set values may need adjustment to local conditions e. g. water pressure, chemicals viscosity etc. Colour coded nozzles are supplied to facilitate this process.
** Incoming water pressure and dosing affects the foam quality, use a hose min. 1/2'' with a maximum length of 20 metres.
The data is subject to variation and the producer reserves the right to change design specifications without notice.
