Mobile foam unit
DESCRIPTION & FUNCTION

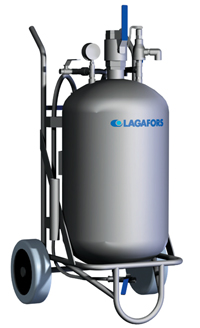

The mobile foam unit MFU 75 from Lagafors® is used for the application of chemicals and disinfectant in foam form. The dosing is done manually directly into the tank, only pressurized air must then be added. The whole unit is made of stainless material and is easy to move thanks to the smooth trolley function. The unit is especially suitable for the cleaning of smaller areas, alternatively when extra cleaning force is needed on one particular spot.
The MFU 75 can be used for cleaning applications in e.g. slaughterhouses, meet processing industries, dairies, breweries, fish industries and other places where a high level of hygiene is required.
The delivery includes:
- 20 metre with shut-off valve..
- Lance for application of foam or luquid.
Features
- Application of chemical foam
- Construction made of stainless steel
- Mobile unit mounted on a trolley
Benefits
- Effective cleaning
- Robust material
- Easy to operate
Facts
- Hygienic result
- Long life time
- Flexible
![[object TextRange]](/files/cube/userfiles/Images/Cleaning/MFU-1-min.jpg)
![[object TextRange]](/files/cube/userfiles/Images/Cleaning/MFU-2-min.jpg)
TECHNICAL INFORMATION
|
Lagafors Mobile Foam Unit
|
|
Model
|
MFU 75
|
| Pressure, max |
9 bar |
| Flow |
6-8 litres/min |
| Temperature, max |
40ºC |
| Tank volume |
75 litres |
Connections (Internal thread)
|
|
Air, incoming
|
ISO 3/8"
|
Air, pressure
|
6-8 bar
|
Air, flow
|
min 100 lit/min
|
|
Dimensions
|
|
| Measurements WxDxH |
650 x 550 x 1100 mm |
| Weight |
50 kg |
The data is subject to variation and the producer reserves the right to change design specifications without notice.
Mobile Foam Unit MFU 75 (403 KB)
