Low Water Pressure Mobile
DESCRIPTION & FUNCTION

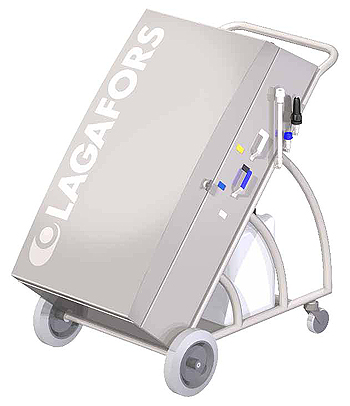

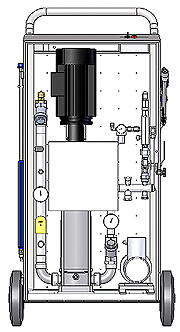

Lagafors Low Water Pressure Mobile, LWP-M 2030/4025, is a complete mobile cleaning equipment for flushing with pressurised water and application of chemical foam and disinfectant. The LWP-M is built on a stainless steel frame with six wheels for easy transportation. The unit consists of a low pressure pump, a compressor for pressurized air and a satellite station with an injector and suction hoses for chemicals. Two 25 litres chemical containers can be placed on the trolley which also provides holders for hose and nozzles. LWP-M has a hygienically designed cabinet made in stainless steel that can easily be opened for service and maintenance.
The LWP-M is especially appropriate for cleaning applications in food processing, e.g. in slaughterhouses, meat processing, dairies, breweries, fish industries, convenient food industries, industrial kitchens and other places where a high level of hygiene is required.
- Working pressure 20 bar or 40 bar.
- Mobile unit with a smooth trolley for easy transportation.
- Easy to install; simply connect water and electricity.
- 20 metres hose, spray gun and nozzles for rinse, foam and disinfection are included.
Features
- Pressure booster pump
- Mobile unit
- Compact ”all-in-one”-unit
Benefits
- Better cleaning energy on surfaces
- Suitable for cleaning in smaller production facilities
- Flexible
Facts
- From 3-8 bar up to 20 bar/40 bar
- Lower investment than a central system
- Possible to use different chemicals
TECHNICAL INFORMATION
|
Lagafors Low Water Pressure Mobile
|
|
Model
|
LWP-M 2030
|
LWP-M 4025
|
| Outgoing water pressure |
20-25 bar |
35-40 bar |
| Water consumption |
0-30 l/min |
0-25 l/min |
| Capacity |
1 user |
1 user |
Surrounding temperature
|
5-25 ºC |
5-25 ºC |
Relative air humidity
|
95 %
|
95 %
|
|
Water Connections
|
|
|
| Water incoming |
Quick coupling
|
Quick coupling |
| Water supply, flow |
> 50 l/min |
> 50 l/min |
| Water supply, pressure |
3-8 bar |
3-8 bar |
| Water temperature, max |
60 ºC |
60 ºC |
| Water outgoing |
1/2” Hose, 20 metres |
1/2” Hose, 20 metres |
|
Electricity
|
|
|
| Voltage |
3 x 380-420 V / 50 Hz
3 x 440-480 V / 60 Hz
|
3 x 380-420 V / 50 Hz
3 x 440-480 V / 60 Hz
|
| Current |
4,5 Amp |
9,4 Amp |
| Power |
2,2 kW |
4,6 kW |
|
Dimensions
|
|
|
Measurements
|
770 x 1200 x 1500 mm
|
770 x 1200 x 1500 mm
|
| Weight |
140 kg |
160 kg |
The data is subject to variation and the producer reserves the right to change design specifications without notice.
