Cube / Cleaning systems / Central System / Central Combi Unit CCU

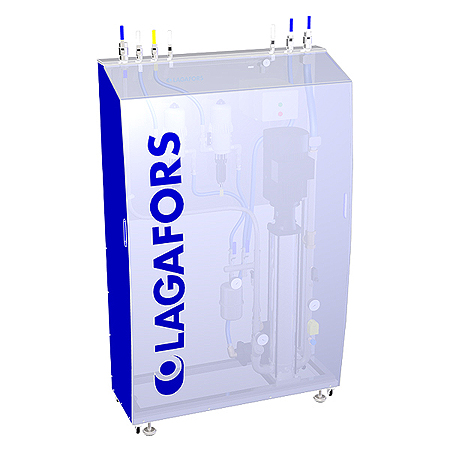

Central Combi Unit, CCU

DESCRIPTION & FUNCTION

The Lagafors CCU is a centralized cleaning system for washing with water, foam application and disinfection for use in applications with lower capacity requirements. Chemical and disinfectant solutions can be dosed in concentrations between 1% and 5%. The Lagafors CCU is especially suitable for cleaning applications in small-scale food processing industries, for example slaughterhouses, meat processing, dairies, breweries, fishing industry, prepared food, large-scale kitchens and other places where a high level of hygiene is required.

Turnkey unit.
Automatic start/stop feature for water as well as chemical and disinfectant solutions.
Built-in pressure indicator that warns when the supply water pressure is too low.
Two different pressure alternatives, 20 or 40 bar.

Features

Increases the pressure on outgoing water
Flexible in flow
High dosing accuracy
Dependable in service
All-in-One system

Benefits

Better cleaning energy on surfaces
Easy to work with
Optimized chemical consumption
Few break-downs
Centralized water, chemicals, disinfectant

Facts

Good hygienic result
Reduced water consumption
Low chemical costs
Low maintenance costs
Low investment

TECHNICAL INFORMATION


Lagafors^® CCU
Model	2090 S	2090 D	20150 S	20150 D	4070 S	4070 D
Exit pressure, water	20-25 bar	20-25 bar	20-25 bar	20-25 bar	35-40 bar	35-40 bar
Water consump.	0-90 l/min	0-90 l/min	0-150 l/min	0-150 l/min	0-70 l/min	0-70 l/min
Flow capacity, 30 lit/user	120 lit/user	120 lit/user	165 lit/user	165 lit/user	90 lit/user	90 lit/user
Capacity, rinsing (30 lit/user)	1-3 users	1-3 users	1-5 users	1-5 users	-	-
Capacity, rinsing (23 lit/user)	-	-	-	-	1-3 users	1-3 users
Exit pressure, chemical solution	6 bar	6 bar	6 bar	6 bar	6 bar	6 bar
Capacity, chemical solution	1-3 users	1-3 users	1-3 users	1-3 users	1-3 users	1-3 users
Capacity, disinfect. solution	-	1-3 users	-	1-3 users	-	1-3 users
Supply connect. (Int. thread)
Supply water, rinsing	ISO-G 1"	ISO-G 1"	ISO-G 1"	ISO-G 1"	ISO-G 1"	ISO-G 1"
Supply water flow	150 l/min	150 l/min	180 l/min	180 l/min	120 l/min	120 l/min
Supply water pressure	3-8 bar	3-8 bar	3-8 bar	3-8 bar	3-8 bar	3-8 bar
Water temp., max	70 ºC	70 ºC	70 ºC	70 ºC	70 ºC	70 ºC
Supply water, dosing	ISO-G 3/4"	ISO-G 3/4"	ISO-G 3/4"	ISO-G 3/4"	ISO-G 3/4"	ISO-G 3/4"
Supply water flow	50 l/min	50 l/min	50 l/min	50 l/min	50 l/min	50 l/min
Supply water pressure	3-5 bar	3-5 bar	3-5 bar	3-5 bar	3-5 bar	3-5 bar
Water temp., max	30 ºC	30 ºC	30 ºC	30 ºC	30 ºC	30 ºC
Air pressure (6-8 bar)	ISO-G 3/8"	ISO-G 3/8"	ISO-G 3/8"	ISO-G 3/8"	ISO-G 3/8"	ISO-G 3/8"
Exit connect. (Int. thread)
Water to satellite	ISO-G 1"	ISO-G 1"	ISO-G 1"	ISO-G 1"	ISO-G 1"	ISO-G 1"
Chemical solution to satellite	ISO-G 1/2"	2 x ISO-G 1/2"	ISO-G 1/2"	2 x ISO-G 1/2"	2 x ISO-G 1/2"	2 x ISO-G 1/2"
Air to satellite	ISO-G 3/8"	ISO-G 3/8"	ISO-G 3/8"	ISO-G 3/8"	ISO-G 3/8"	ISO-G 3/8"
Electric supply
Voltage	3 x 380-420 V / 50 Hz	3 x 380-420 V / 50 Hz	3 x 380-420 V / 50 Hz	3 x 380-420 V / 50 Hz	3 x 380-420 V / 50 Hz	3 x 380-420 V / 50 Hz
Current	13,3 A	13,3 A	18,9 A	18,9 A	18,9 A	18,9 A
Power consump.	4,55 kW	4,55 kW	8,05 kW	8,05 kW	8,05 kW	8,05 kW
Dimen.
Dimen. W x D x H	1200 x 480 x 1920 mm	1200 x 480 x 1920 mm	1200 x 480 x 1920 mm	1200 x 480 x 1920 mm	1200 x 480 x 1920 mm	1200 x 480 x 1920 mm
Weight, appr.	155 kg	160 kg	160 kg	165 kg	165 kg	170 kg

The data is subject to variation and the producer reserves the right to change design specifications without notice.
* Protective cover is optional.

Central Combu Unit CCU (391 KB)
