Low Water Pressure Pump LWP 20

DESCRIPTION & FUNCTION

Lagafors^® LWP 20 (Low Water Pressure, Stationary Booster), is designed for cleaning with pressurized water and it is to be connected to a number of Lagafors^® Variable Media Satellites (VMS). The LWP is especially appropriate for cleaning applications in food processing, e.g. in dairies, breweries, fish industries, prepared food industries, industrial kitchens and other places where high level of hygiene is required.

Working pressure 20-25 bar
Floor-standing unit
Unit is intended for central placement (non-production areas).

Features

Increases the pressure on outgoing media
Flexibility in pressure and flow
Constant pressure on outgoing water
Vertical multistage centrifugal pump
Frequency-controlled pump

Benefits

Better cleaning energy on surfaces
Multiple options
Ergonomical and safe for the user
Reliable and robust pump model
Optimal energy consumption

Facts

From 3-8 bar up to 25 bar
20-25 bar and up to 600 l/min
Insignificant pressure variations
Low maintenance costs
Low operating costs

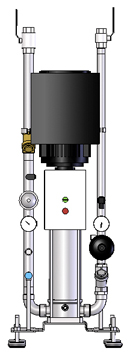

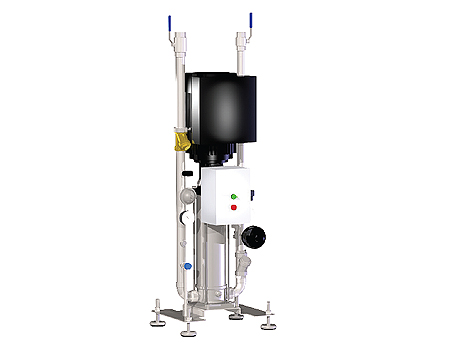

Lagafors^® LWP 20150 SB Lagafors^® LWP 20600 Multi

TECHNICAL INFORMATION


Lagafors^® Low Water Pressure Pump LWP 20 SB
Model	LWP 2030 SB	LWP 2090 SB	LWP 20150-F SB**	LWP 20150 Multi**	LWP 20300 Multi**	LWP 20450 Multi**	LWP 20600 Multi**
Outgoing water pressure	20-25 bar	20-25 bar	20-25 bar	20-25 bar	20-25 bar	20-25 bar	20-25 bar
Water consumpt.	0-30 l/min	0-90 l/min	0-150 l/min	0-150 l/min	0-300 l/min	0-450 l/min	0-600 l/min
Flow capacity	50 l/min	120 l/min	165 l/min	165 l/min	330 l/min	495 l/min	660 l/min
Capacity (30 lit/user)	1-2 users	3-4 users	5 users	5 users	10 users	15 users	20 users
Surround. temp.	5-30 ºC	5-30 ºC	5-30 ºC	5-30 ºC	5-30 ºC	5-30 ºC	5-30 ºC
Connect.
Water incoming	ISO-G 1 1/4" int. thread	ISO-G 1 1/4" int. thread	ISO-G 1 1/4" int. thread	ISO-G 2 1/2" int. thread	ISO-G 2 1/2" int. thread	ISO-G 2 1/2" int. thread	ISO-G 2 1/2" int. thread
Water supply, flow	70 l/min	150 l/min	180* l/min	180* l/min	360* l/min	540* l/min	720 l/min
Water supply, pressure	3-8 bar	3-8 bar	3-8 bar	3-8 bar	3-8 bar	3-8 bar	3-8 bar
Water temp., max	70 ºC	70 ºC	70 ºC	70 ºC	70 ºC	70 ºC	70 ºC
Water outgoing	ISO-G 1" int. thread	ISO-G 1" int. thread	ISO-G 1" int. thread	ISO-G 2 1/2" int. thread	ISO-G 2 1/2" int. thread	ISO-G 2 1/2" int. thread	ISO-G 2 1/2" int. thread
Elect.
Voltage***	3 x 400 V + N + PE / 50 Hz	3 x 400 V + N + PE / 50 Hz	3 x 400 V + N + PE / 50 Hz	3 x 400 V + N + PE / 50 Hz	3 x 400 V + N + PE / 50 Hz	3 x 400 V + N + PE / 50 Hz	3 x 400 V + N + PE / 50 Hz
Current	4,5 A	9,0 A	14,6 A	14,6* A	30* A	45* A	60 A
Power	2,2 kW	4,0 kW	7,5 kW	7,5* kW	15* kW	22,5* kW	4 x 7,5 kW
Dimen.
Measure. WxDxH	500 x 500 x 1400 mm	500 x 500 x 1510 mm	500 x 500 x 1400 mm	1140 x 760 x 1130 mm	1140 x 760 x 1130 mm	1140 x 760 x 1130 mm	1140 x 760 x 1130 mm
Weight, approx.	100 kg	125 kg	125 kg	175 kg	250 kg	325 kg	400 kg

The data is subject to variation and the producer reserves the right to change design specifications without notice.
* A fully built-out unit has the following capacity: 720 lit/min - 60 A - 30 kW.
** Frequency-regulated pumps.
*** Other specifications on request.
Alarm feature for low supply water pressure and exceeded max flow is standard on all units.

Data Sheet LWP 20 SB (660 KB)
