Low Water Pressure Pump LWP 20 CB and LWP 40 CB

DESCRIPTION & FUNCTION

Lagafors® Low Water Pressure Pump Combi Booster, LWP 20 CB and LWP 40 CB, is designed for cleaning with pressurized water as well as chemical and disinfectant solutions. These units have a hygienic design, are intended for placement in a production area and cane be connected to a number of Lagafors® satellite stations. The Lagafors^® LWP is especially appropriate for cleaning applications in food processing, e.g. in dairies, breweries, fish industries, convenience food industry, industrial kitchens and other places where high level of hygiene is required (LWP 40 CB also for slaughterhouses, meet processing, etc.).

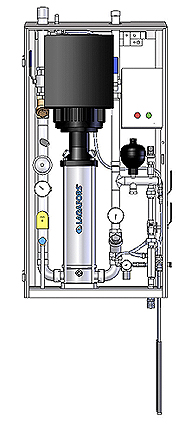

LOW WATER PRESSURE PUMP LWP 20 CB

Working pressure 20-25 bar

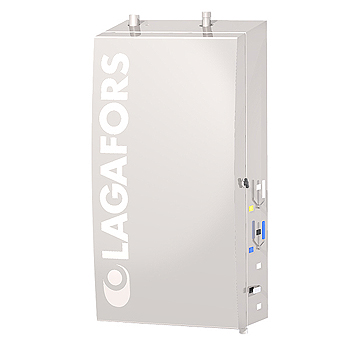

Delivered with a hygienically designed cabinet
Unit is wall-mounted

Features

Increases the pressure on outgoing media
Flexibility in pressure and flow
Supplies water as well as chemical and disinfectant solution
Hygienic design

Benefits

Better cleaning energy on surfaces
Multiple options
All-in-One concept
Enables placement in production area

Facts

From 3-8 bar up to 25 bar
20-25 bar and up to 150 l/min
Flexible
Easy to clean

LOW WATER PRESSURE PUMP LWP 40 CB

Working pressure 35-40 bar
Delivered with or without cabinet
Available for wall or floor installation

Features

Increases the pressure on outgoing media
Flexibility in pressure and flow
Constant pressure on outgoing media
Vertical multistage centrifugal pump
Frequency-controlled pump

Benefits

Better cleaning energy on surfaces
Multiple options
Ergonomical and safe for the user
Reliable and robust pump model
Optimal energy consumption

Facts

From 3-8 bar up to 40 bar
35-40 bar and up to 90 l/min
Insignificant pressure variations
Low maintenance costs
Low operating costs

TECHNICAL INFORMATION


Lagafors® Low Water Pressure Pump LWP 20 CB
Model	LWP 2030 CB	LWP 2090 CB	LWP 20150 CB*
Outgoing water pressure	20-25 bar	20-25 bar	20-25 bar
Water consumption	0-30 l/min	0-90 l/min	0-150 l/min
Flow capacity	50 l/min	120 l/min	180 l/min
Capacity (30 lit/user)	1-2 user	3 users	5 users
Surrounding temperature	5-25 ºC	5-25 ºC	5-25 ºC
Relative air humidity	95 %	95 %	95 %
Connections
Water incoming	ISO-G 1 1/4'' int. thread	ISO-G 1 1/4'' int. thread	ISO-G 1 1/4'' int. thread
Water supply, flow	70 l/min	150 l/min	210 l/min
Water supply, pressure	3-8 bar	3-8 bar	3-8 bar
Water temperature, max	60 ºC	60 ºC	60 ºC
Water outgoing	ISO-G 1'' int. thread	ISO-G 1'' int. thread	ISO-G 1'' int. thread
Air, incoming	ISO-G 1 1/4'' int. thread	ISO-G 1 1/4'' int. thread	ISO-G 1 1/4'' int. thread
Air, pressure	6-8 bar	6-8 bar	6-8 bar
Air, flow	150 l/min	150 l/min	150 l/min
Electricity
Voltage	3 x 380- 420 V / 50 Hz 3 x 440- 480 V / 60 Hz	3 x 380- 420 V / 50 Hz 3 x 440- 480 V / 60 Hz	3 x 380- 420 V / 50 Hz 3 x 440- 480 V / 60 Hz
Current	4,5 A	9 A	14,6 A
Power	2,2 kW	4 kW	7,5 kW
Dimensions
Measurements W x D x H	640 x 380 x 1290 mm	640 x 380 x 1290 mm	640 x 380 x 1290 mm
Weight	125 kg	145 kg	175 kg

The data is subject to variation and the producer reserves the right to change design specification without notice.
*Frequency-regulated pumps. Alarm feature for low supply water pressure is standard.
