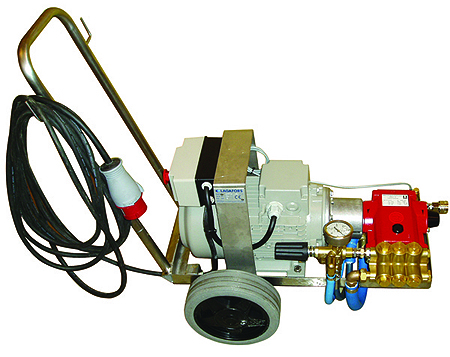

Lagafors® Mobile High-Pressure Unit HPU
DESCRIPTION & FUNCTION
The Lagafors
® HPU series (High Pressure Unit) of high-pressure cleaning systems was especially developed for the food-processing industry, and are available in both mobile and wall-mounted formats. A stainless steel stand, automatic start/stop and high moisture durability make them ideal for a wide range of applications. The units can be equipped with an injector for application of chemical and disinfectant solutions.
The units are especially appropriate for cleaning applications in connection with food processing, for example in slaughter houses, meat processing industries, dairies, breweries, fishing industries and other industries where a high level of hygiene is required.
- Up to 130 bar pressure
- Stainless steel stand
- Mobile or wall mounted format
- Easy connection of water and electricity (IP65 classified)
- Automatic start/stop via flow indicator
FEATURES
- High-pressure pump
- Familiar pump model
- Compact unit
BENEFITS
- More effective cleaning
- Robust and reliable
- Space-saving
FACTS
- From 2-8 bar up to 130 bar
- Lower maintenance costs
- Leaves plenty of room for another equipment
Accessories:
- Hose
- Injector
- ST 2600 spray gun, including swivel
- Dual water-jet pipes
- Stainless steel hose reel
Lagafors® Mobile High-Pressure Unit HPU
|
Model
| HPU-M 13018
| HPU-M 10028
| HPU-S 13018
| HPU-S 10028
|
Maximum pressure
| 20-130 bar
| 20-100 bar
| 20-130 bar
| 20-100 bar
|
Water consumption
| 0-18 l/min
| 0-28 l/min
| 0-18 l/min
| 0-28 l/min
|
Capacity
| 1 user
| 1 user | 1 user | 1 user |
Connections
|
|
|
|
|
Water supply
| Nito 1/2"
| Nito 1/2" | Nito 1/2" | Nito 1/2" |
Supply water flow
| 25 l/min
| 40 l/min | 25 l/min | 40 l/min |
Supply water pressure
| 2-8 bar
| 2-8 bar | 2-8 bar | 2-8 bar |
Water temperature, max
| 70 ºC | 70 ºC | 70 ºC | 70 ºC |
Exit water
| Quick coupling
| Quick coupling | Quick coupling | Quick coupling |
Electric supply
|
|
|
|
|
Voltage
| 3 x 380-420 V / 50 Hz
| 3 x 380-420 V / 50 Hz | 3 x 380-420 V / 50 Hz | 3 x 380-420 V / 50 Hz |
Electric rating
| 10,5 A
| 13 A
| 10,5 A
| 13 A
|
Power consumption
| 5,5 kW
| 5,5 kW
| 5,5 kW
| 5,5 kW
|
Dimensions
|
|
|
|
|
Weight
| 65 kg
| 65 kg
| 65 kg
| 65 kg
|
The data is subject to variation and the producer reserves the right to change design specifications without notice.
