Cube / Hygiene / Washing Machines / Tunnel washing machines / CL-T 200 and 200 XL

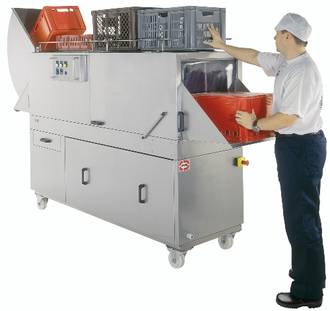

Industrial washing machines for crates CL-T 200 and CL-T 200 XL

Compact tunnel washing machines on wheels are designed for cleaning up to 200 Euro crates per hour (model 200XL up to 300 Euro crates per hour). Adjustable side guides inside the washing tunnel allow the washing of crates and other products of different sizes. Smaller items can be washed inside a stainless steel mesh basket. The machines consist of the main washing part and rinsing part, separated with a neutral zone. Machines can be upgraded with a liquid blow-off tunnel CL-T ABT 200 or 200XL.

TECHNICAL INFORMATION


	CL-T 200	CL-T 200 XL
Dimensions (L x W x H) [mm]	3200 x 800 x 2080	3200 x 980 x 2080
Capacity (crates per hour)	150 ÷ 230	220 ÷ 300
Size of washing tunnel (W x H) [mm]	460 x 470	650 x 470
Main wash water tank volume [l]	150	215
Main wash water heating [kW]	2 x 6	2 x 6
Main wash water pump connecting power [kW]	2,7	2 x 2,7
Water consumption [l/hour]	480	480
Connecting voltage	3 x 400 V / 50 Hz	3 x 400 V / 50 Hz
Connecting power [kW]	15	18
Electric fuse [A]	25	50
Water connection / outlet	1/2 R" / 40 mm	1/2 R" / 40 mm
