Cube / Hygiene / Washing Machines / Drying tunnels / Drying tunnel for crates CL-ABT 600 and 1200

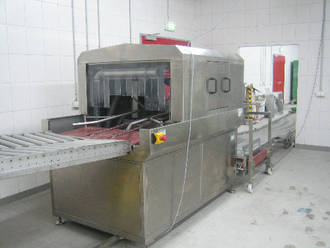

Drying tunnel for crates CL-ABT 600 and 1200

This liquid blow-off tunnel is designed for removing the remnants of water after the washing process. Water is removed with cold air accelerated by ventilators through a sophisticated air knives system. The adjustable side and upper guides inside the washing tunnel allow the washing of crates and other products of different sizes (also palettes up to 800 mm width). Smaller items can be washed inside a stainless steel mesh basket. It can be used as a self-standing unit or as part of the CL-T 400 through CL-T 2000 tunnel washing machines range.

TECHNICAL INFORMATION


	CL-ABT 400-600
Dimensions (L x W x H) [mm]	1645 x 900 / 980 x 1570
Capacity (crates per hour)	200 / 300
Connecting voltage	3 x 400 V / 50 Hz
Connecting power (electrical/steam)	4 kW
Recommended to be used with	CL-T 200 and CL-T 200 XL
