Cube / Hygiene / Washing Machines / Industrial utensil washers / CL-K 8100, 811x

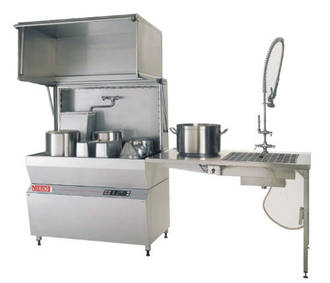

Dishwashers CL-K 8100, 811x

These dishwashers are designed for the automatic cleaning and sterilization of dishes, pots, crates, knife baskets, small machine parts and many other different objects. The washing process consists of main-wash and rinse phase (rinsing with 85°C clear water) with a help of a rotating nozzle system. The compact design and water recycling system ensure minimal water and energy consumption. The dishwasher can be upgraded with side tables and a shower for pre-washing and the removal of larger dirt particles.

TECHNICAL INFORMATION


	8110	8115
Outlet [mm]	Ø 40	Ø 40
Connecting voltage	3 x 400 V / 50 Hz	3 x 400 V / 50 Hz
Connecting power [kW]	10,5	10,5
Water connection	R 1	R 1
Washing time in minutes	2 / 4 / 6	2 / 4 / 6
Washing space (L x W x H) [mm]	690 x 635 x 610	810 x 635 x 610
Main wash water tank volume [l]	60	60
Rinsing time	20 sec.	20 sec.
Rinse water tank volume [l]	13	13
Temperature of the rinsing water	85ºC	85ºC
Water consumption per rinsing [l]	20	20
