Cube / Hygiene / Washing Machines / Cabin washing machines / CL-K 200

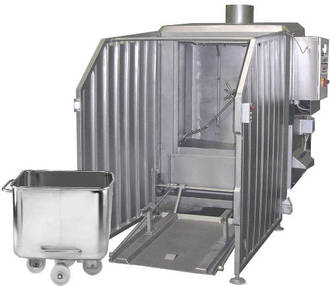

200 Litre buggie washing machine CL-K 200

This cabin washing machine is designed for optimal cleaning of up to 30 DIN9797 buggies per hour. The washing process consists of buggie loading, main-wash, rinse and flow-off phases and buggie unloading. The compact design and water recycling system ensure minimal water and energy consumption. It is also available in the CL-K 300 model for washing off 300 litre DIN9797 buggies.

TECHNICAL INFORMATION


	CL-K 200 /D	CL-K 200 /E	CL-K 300 /D	CL-K 300 /E
Dimensions (LxWxH) [mm]	2950 x 2300 x 2200	2950 x 2300 x 2200	3500 x 2300 x 2200	3500 x 2300 x 2200
Weight [kg]	App. 570	App. 550	App. 770	App. 750
Capacity in buggies/h	Up to 30	Up to 30	Up to 30	Up to 30
Connecting voltage	3 x 400 V / 50 Hz	3 x 400 V / 50 Hz	3 x 400 V / 50 Hz	3 x 400 V / 50 Hz
Connecting power	8 kW	28 kW	10 kW	30 kW
Protection type	IP65	IP65	IP65	IP65
Water connection / outlet	R1" / Ø 60 mm tube	R1" / Ø 60 mm tube	R1" / Ø 60 mm tube	R1" / Ø 60 mm tube
Water consumption per buggie	App. 11 l	App. 11 l	App. 11 l	App. 11 l
Inlet water temperature	45ºC ± 5	45ºC ± 5	45ºC ± 5	45ºC ± 5
Inlet steam pressure	2 ÷ 8 bar	/	2 ÷ 8 bar	/
Steam consumption	App. 30 kg/h	/	App. 30 kg/h	/
