Cube / Hygiene / Hygiene Equipment / Hand-wash basins / Hand-wash basin WR

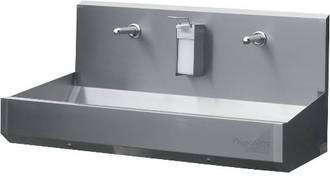

Hand-wash basin WR

Multiple washing troughs with a stable backsplash are available in 10 different sizes (from 2 to 12 washing spaces). Available in three executions: sensor operated (24V connected to el. mains or 9V battery operated) or knee push activation. Available as a wall mounted WR/P and floor mounted model WR/F on strong stainless steel feet. WR/D washing trough series offer from 4 to 12 washing spaces in two rows.

WR trough range can be equipped with accessories such as:

Paper towel holder HSP or PRH
Paper basket PK CNS
Refuse sack holder ABF
Universal dispenser (soap or disinfection agent) USP

TECHNICAL INFORMATION


Water inlet	2 x R 1/2"
Water outlet	DN50, central
Electrical connection	230V / 50 Hz
Connecting power	10 VA per washing space
Guidance voltage	24 V
Protection type	IP 65


Type	Dimensions (L x W x H) [mm]	Operation	Order No.
WR2 (/K)	1000 x 535 x 666	Sensor (knee)	2530-021 (2530-022)
WR3 (/K)	1500 x 535 x 666	Sensor (knee)	2530-037 (2530-038)
WR4 (/K)	2000 x 535 x 666	Sensor (knee)	2530-053 (2530-054)
WR5 (/K)	2500 x 535 x 666	Sensor (knee)	2530-061 (2530-062)
WR6 (/K)	3000 x 535 x 666	Sensor (knee)	2530-071 (2530-072)
WRD2 (/K)	1000 x 535 x 1347	Sensor (knee)	2530-023 (2530-024)
WRD3 (/K)	1500 x 535 x 1347	Sensor (knee)	2530-039 (2530-040)
WRD4 (/K)	2000 x 535 x 1347	Sensor (knee)	2530-055 (2530-056)
WRD5 (/K)	2500 x 535 x 1347	Sensor (knee)	2530-063 (2530-064)
WRD6 (/K)	3000 x 535 x 1347	Sensor (knee)	2530-073 (2530-74)
WRD4 / 2S (/K)	1000 x 535 x 1347	Sensor (knee)	2530-071 (2530-372)
WRD6 / 2S (/K)	1500 x 535 x 1347	Sensor (knee)	2530-387 (2530-388)
WRD8 / 2S (/K)	2000 x 535 x 1347	Sensor (knee)	2530-403 (2530-404)
WRD10 / 2S (/K)	2500 x 535 x 1347	Sensor (knee)	2530-415 (2530-416)
WRD12 / 2S (/K)	3000 x 535 x 1347	Sensor (knee)	2530-425 (2530-426)
