Cube / Hygiene / Hygiene Equipment / Hand-wash basins / Hand-wash basin HWB

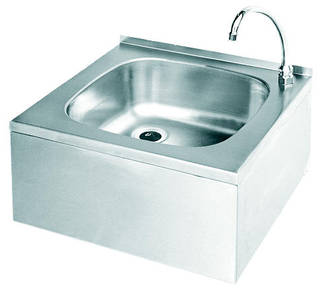

Hand-wash basin HWB

A wall mounted hand-wash basin with sensor or knee push valve activation. These are available in three different sizes.

HWB basin range can be equipped with accessories such as:

Paper towel holder HSP or PRH
Knife sterilizer MB
Paper basket PK CNS
Refuse sack holder ABF
Universal dispenser (soap or disinfection agent) USP

VERSIONS


Type	Dimensions (W x D x H) [mm]	Dimensions of the hand-wash basin [mm]	Order No.
HWB Knee	400 x 320 x 240	340 x 240 x 150	9410-112
HWB Knee	470 x 410 x 240	370 x 340 x 150	9410-110
HWB Knee	550 x 450 x 270	500 x 310 x 150	9410-111
HWB Sensor	400 x 320 x 240	340 x 240 x 150	9410-105
HWB Sensor	470 x 410 x 240	370 x 340 x 150	9410-102
HWB Sensor	550 x 450 x 270	500 x 310 x 150	9410-103

TECHNICAL INFORMATION


Water outlet	DN50
Water connections for cold water	R 3/8"
Water connection for hot water	R 3/8"
Connection voltage (HWB/S)	230 V / 50 Hz
Protection type (HWB/S)	IP65
