Cube / Hygiene / Washing Machines / Drying tunnels / Drying tunnel for crates CL-ABT 200 and 200xL

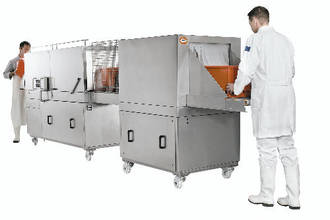

Drying tunnel for crates CL-ABT 200 and 200xL

This liquid blow-off tunnel is designed for removing the remnants of water after the washing process. Water is removed with cold air accelerated by ventilators through a sophisticated air knives system. The adjustable side and upper guides inside the washing tunnel allow the washing of crates and other products of different sizes. Smaller items can be washed inside a stainless steel mesh basket. It can be used as a self-standing unit or as part of the CL-T 200 and CL-T 200XL tunnel washing machines.

TECHNICAL INFORMATION


	CL-ABT 200 / 200XL
Dimensions (L x W x H) [mm]	1645 x 900 / 980 x 1570
Capacity (crates per hour)	200 / 300
Connecting voltage	3 x 400 V / 50 Hz
Connecting power (electrical/steam)	4 kW
Recommended to be used with	CL-T 200 and CL-T 200 XL
